The CyD House, located just north of Lima, is a 5,059 square foot home nestled into the area’s terrain, maximizing both space and views. Designed by Felipe Ferrer of V.Oid with Alonso Toleda (then of Diacrítica, now with Colliers), the wood, steel, concrete and stone home is located in the Los Cóndores Country Club of Chaclacayo, north of Lima.

CyD Summer Home

cyd-house-p131014-j-2

The following copy is courtesy of V.Oid:
Commissioned by a patron whose passion for wood pushed the architects to explore its many uses and expressions, every joint was designed to be invisible to best generate a seeming balance amongst pieces set or juxtaposed against each other.

cyd-house-p131014-j-17 cyd-house-p131014-j-1cyd-house-p131014-j-7

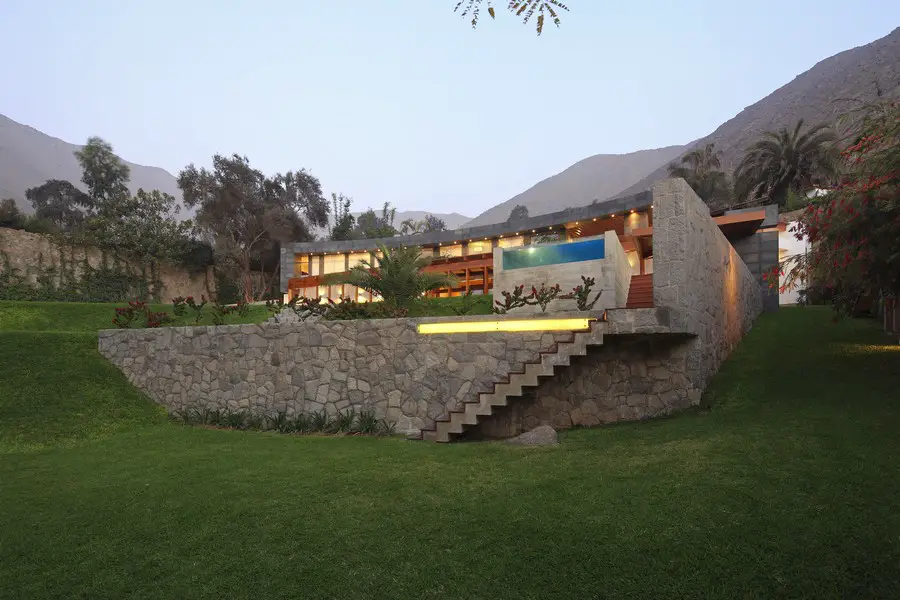

The site measures approximately 2500sqm, presenting an irregular geometry and steep inclines, the most dramatic of which is a land depression rife with obsolete cisterns.

CyD Summer Home front cyd-house-p131014-j-5 cyd-house-p131014-j-13

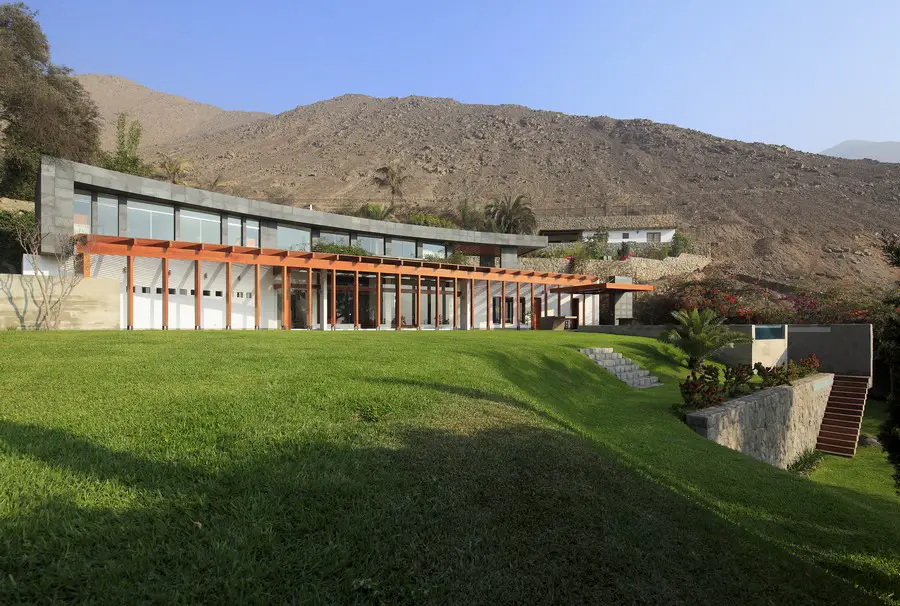

To best reintegrate the unoccupied area of the lot –its main asset– we pushed the house up against the adjacent hill’s steepest front in order consolidate the spaces before and below its line of vision. Using a very strong symmetry, the house’s shape consists of two V-shaped wings that adjust to the terrain’s perimeter, maximizing the flat garden area in the front.

cyd-house-p131014-j-6
cyd-house-p131014-j-10

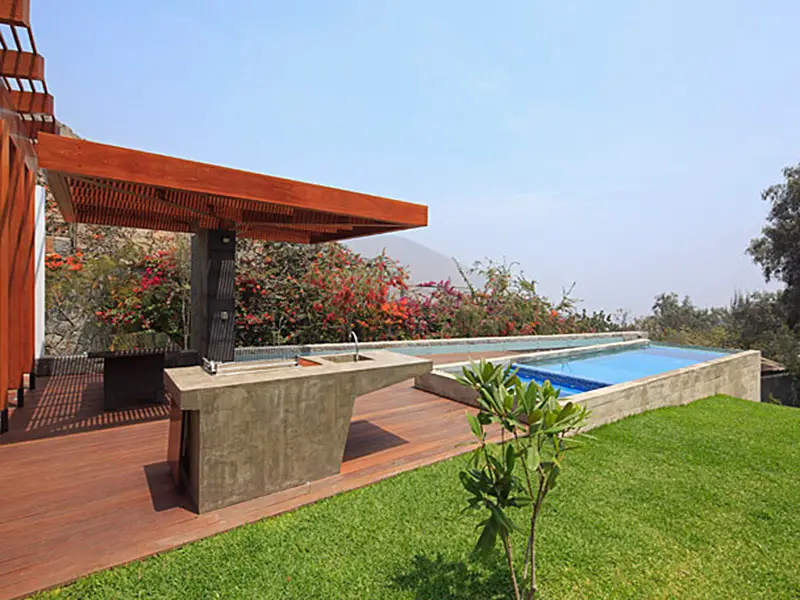

20cyd-house-p131014-j-4

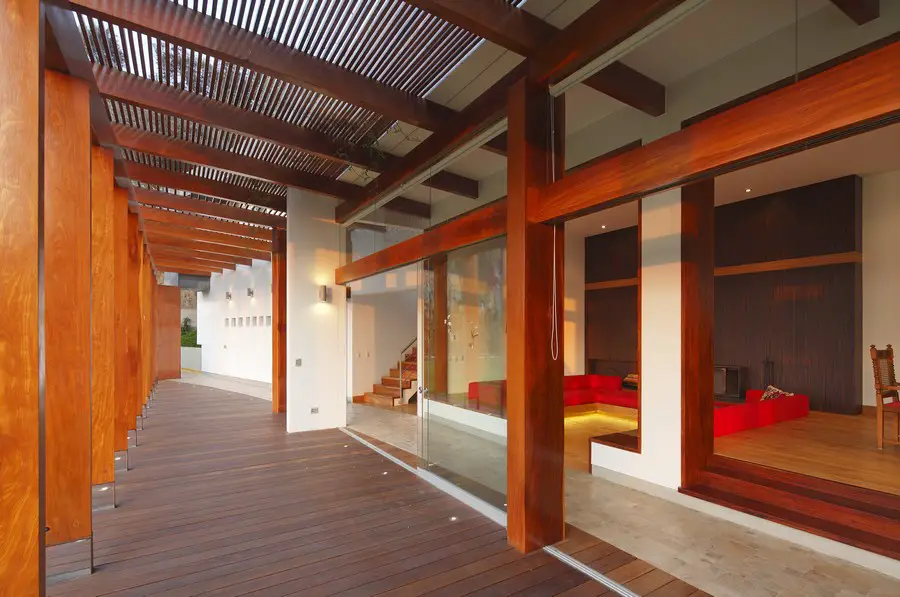

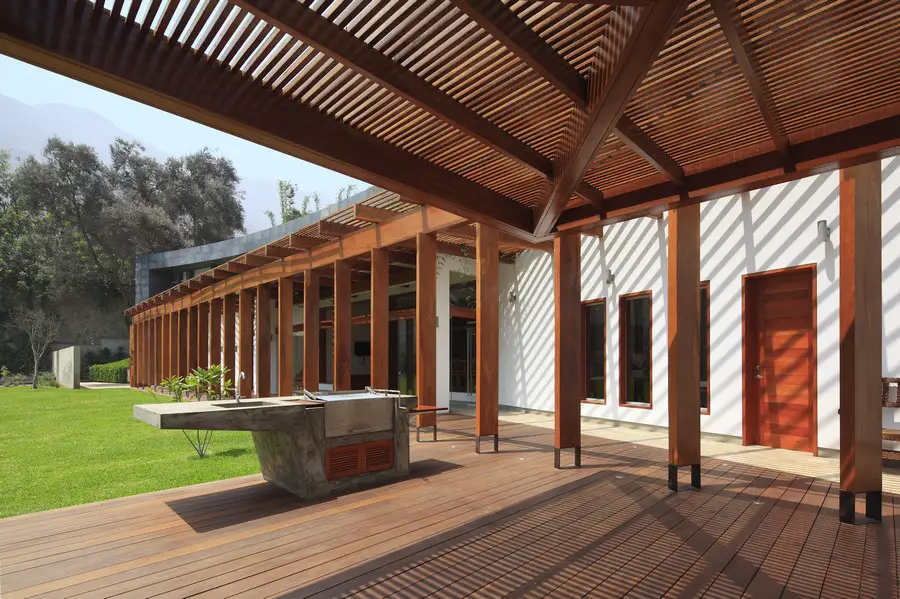

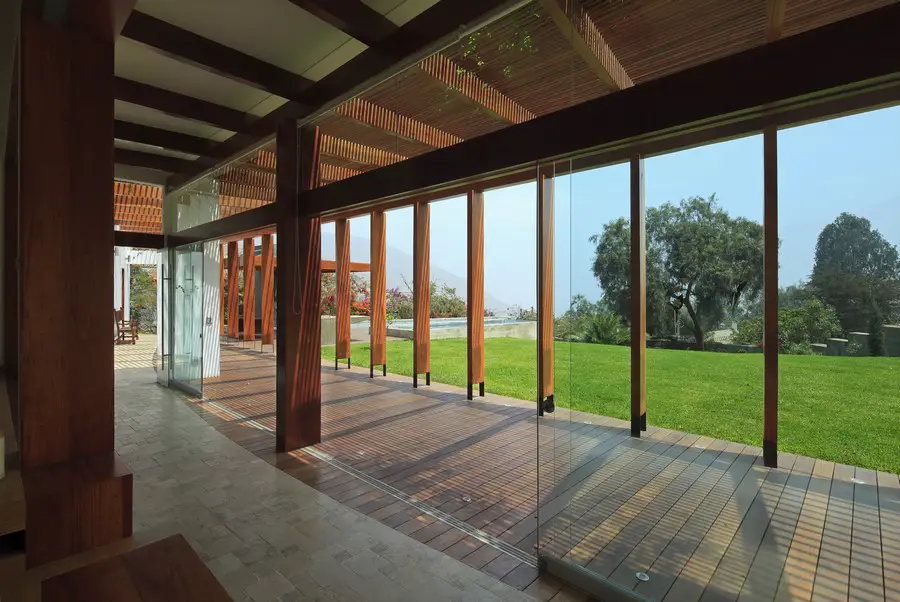

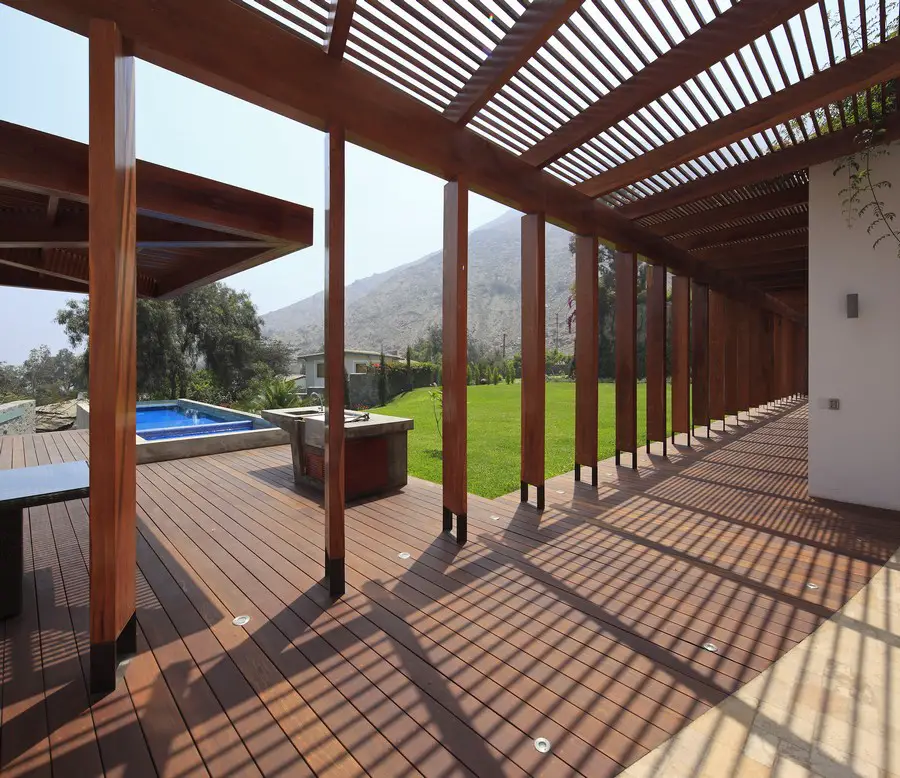

The entrance is at the far left. A lengthwise, partly-covered gallery runs along the house, integrating all its social areas, namely, the vestibule, the living and dining rooms, the kitchen and the terrace. The second story holds the private areas: on the left wing are the children’s quarters; on the right is a family porch and, at the center –capping the volume with the greatest hierarchical importance– lies the master bedroom, with a privileged view of the valley.

cyd-house-p131014-j-11 cyd-house-p131014-j-8 cyd-house-p131014-j-9

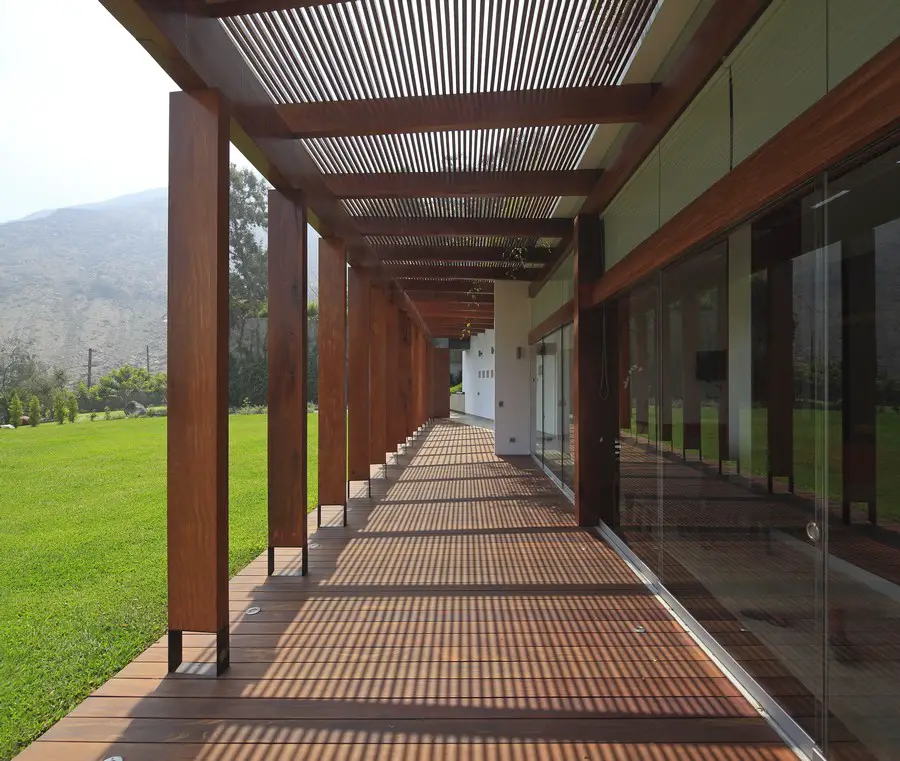

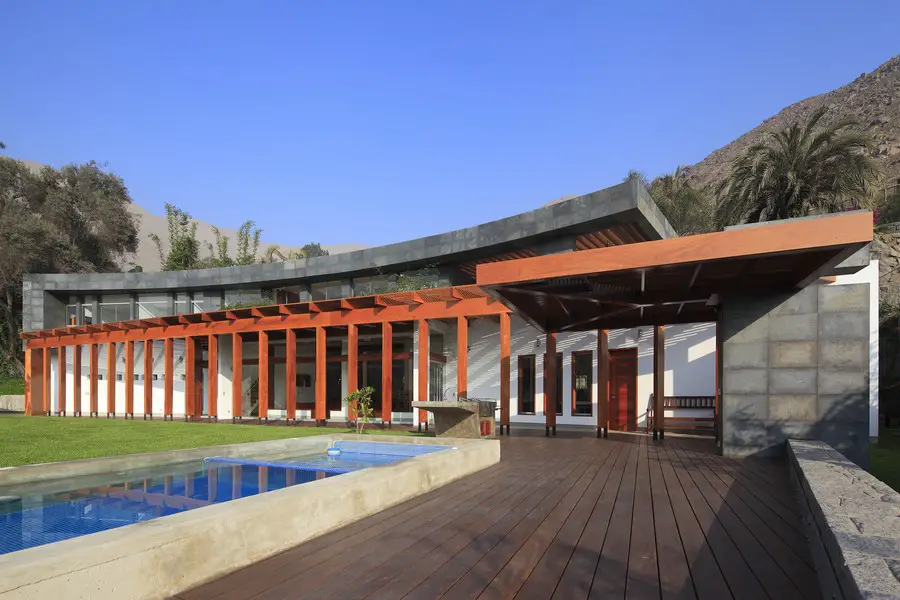

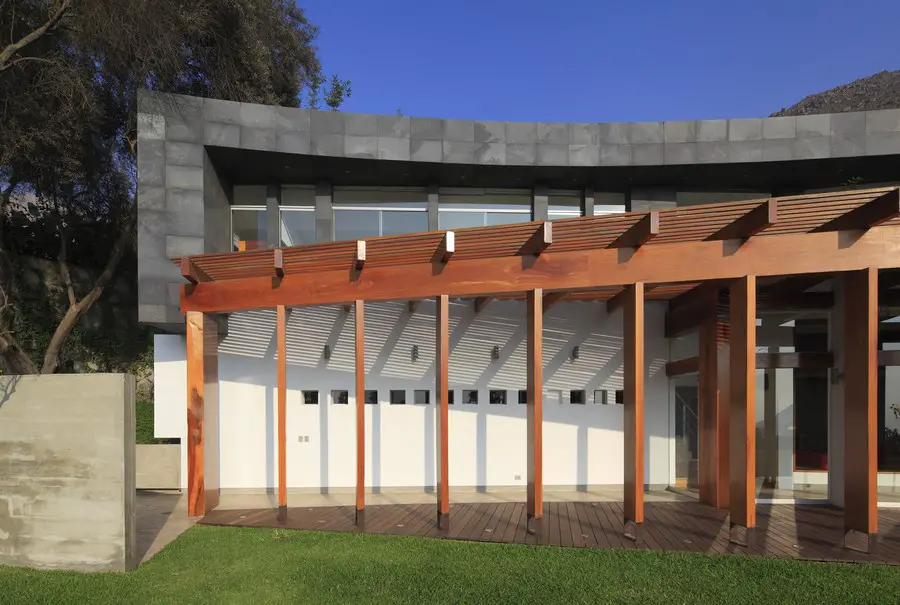

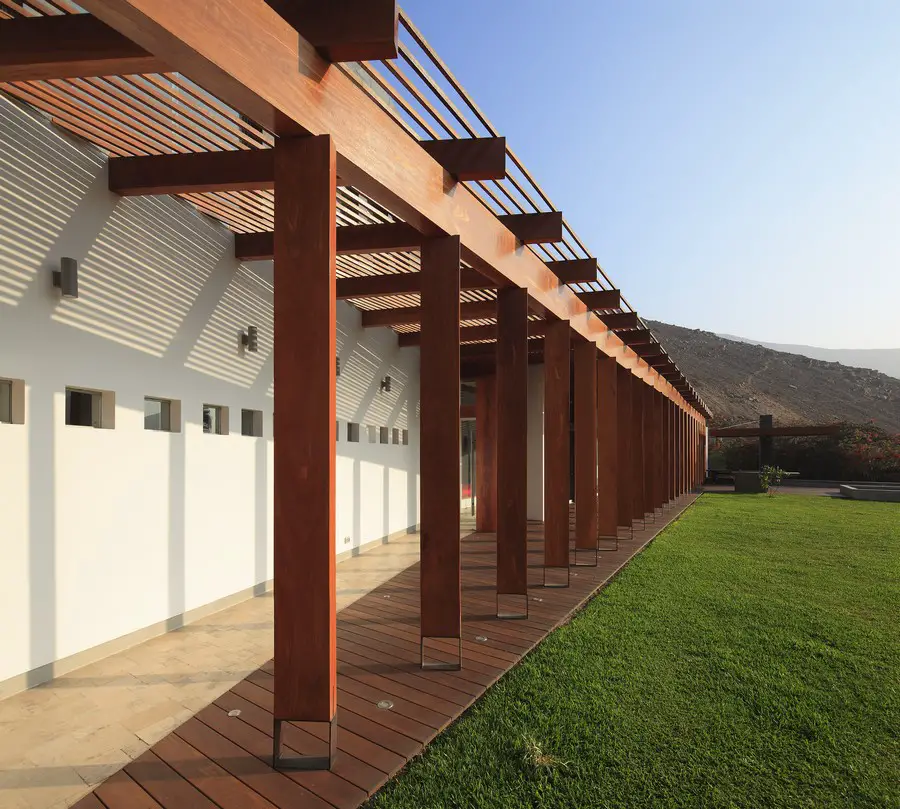

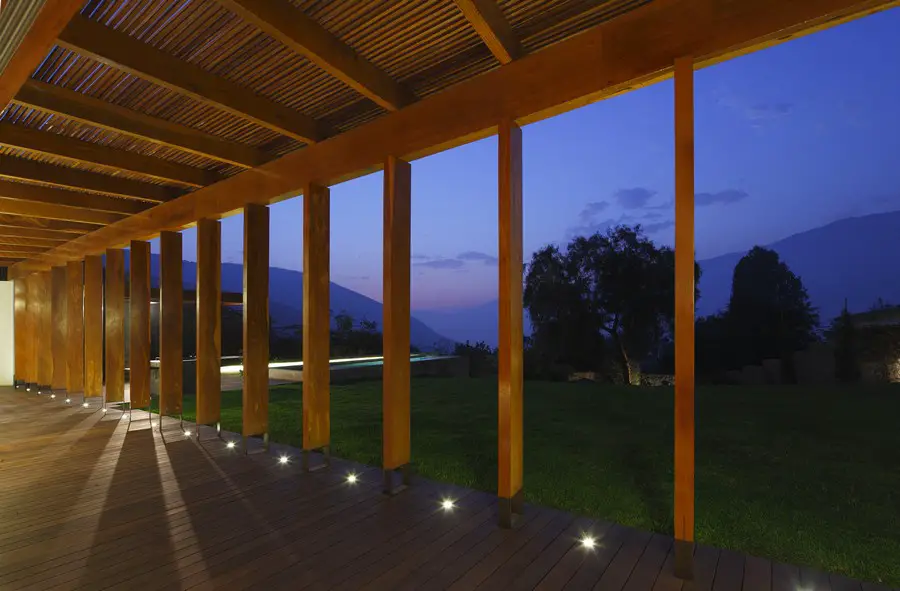

The wooden columns rest on an empty Corten steel frame whilst the terrace’s columns, floors, and beams are all made of Brazilian teak (Dipteryx odorata) of different densities, such that the natural knots, skeins and streaks of the wood attain a maximized expressive power. The different shades of wood used by the columns in the gallery also plays with a gradient of shading through angling and distance to work as a sundial.

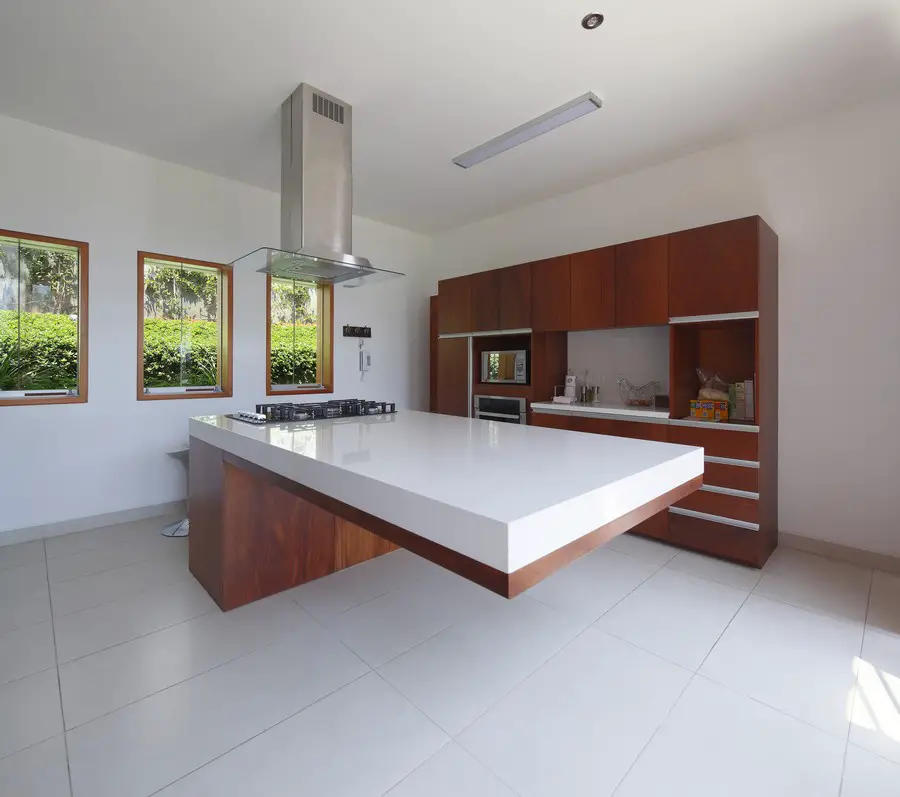

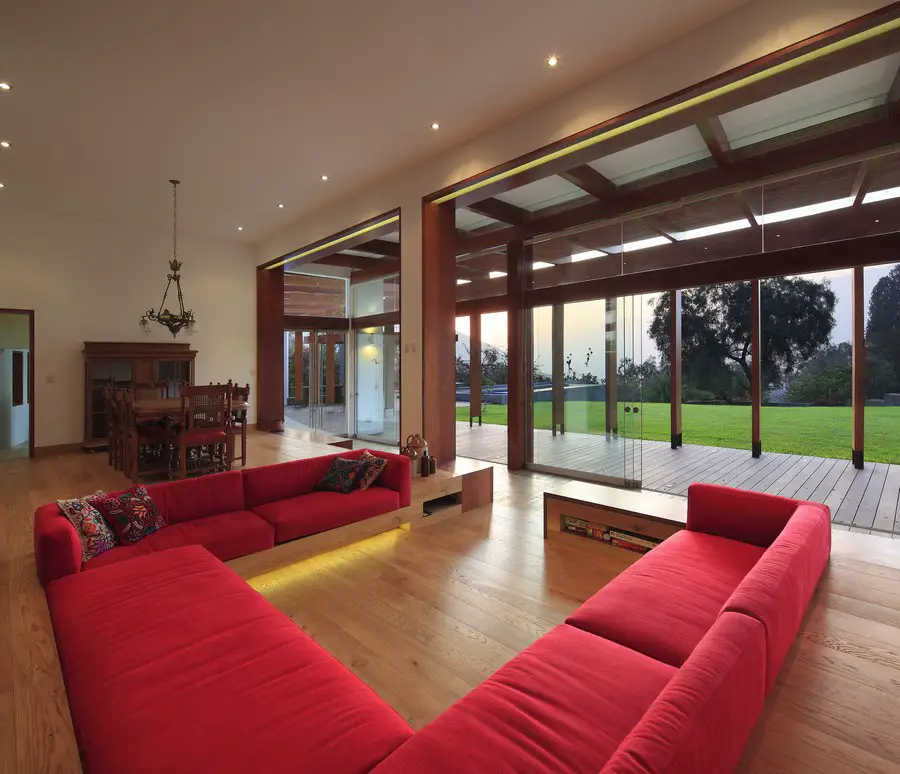

cyd-house-p131014-j-14 cyd-house-p131014-j-15 cyd-house-p131014-j-16

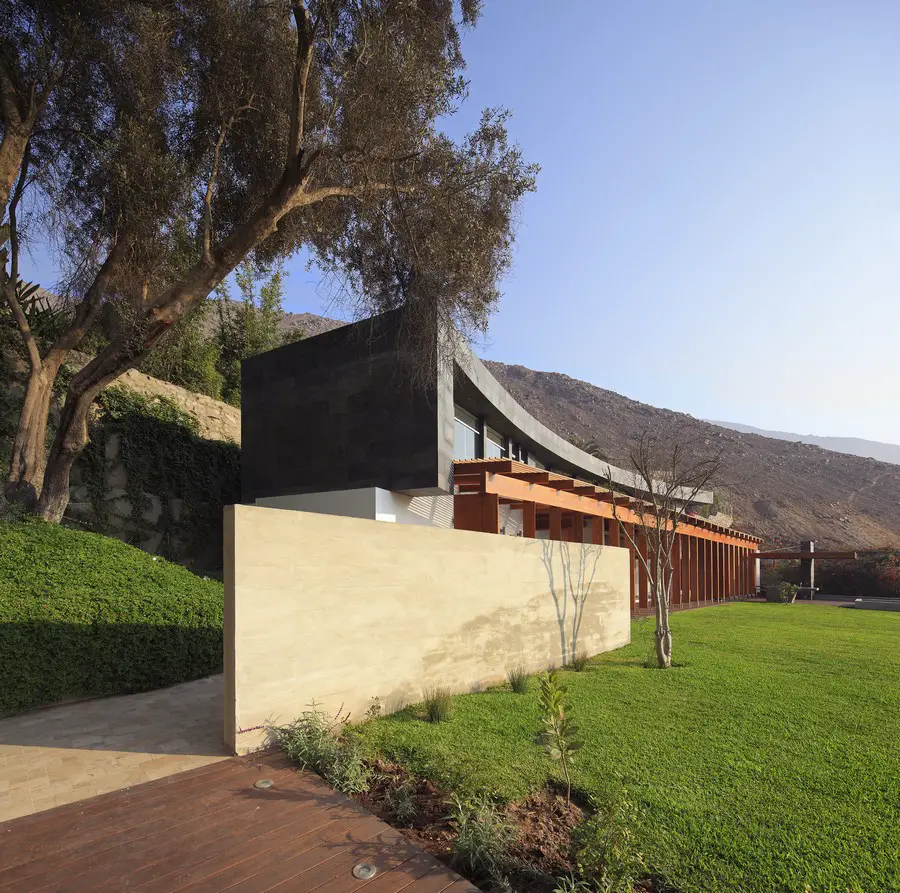

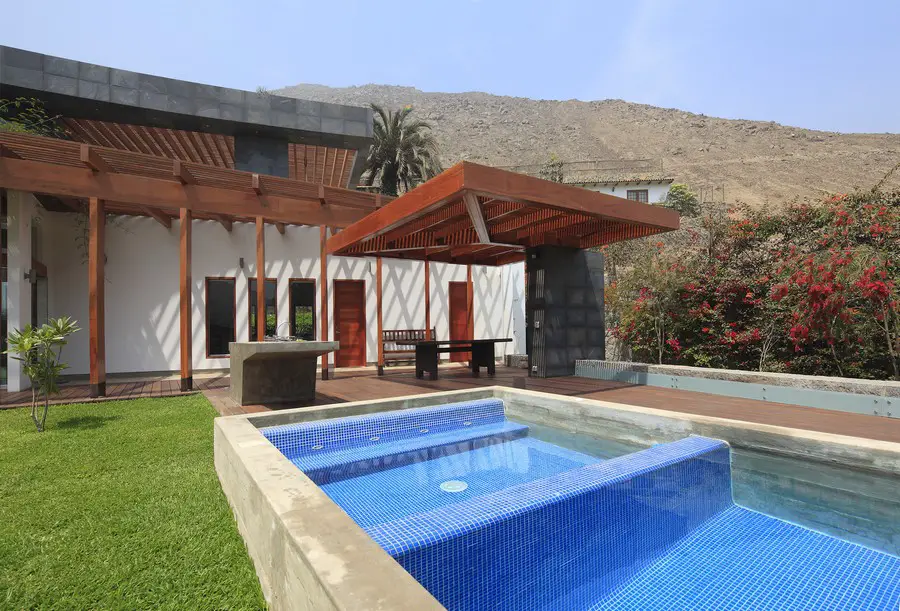

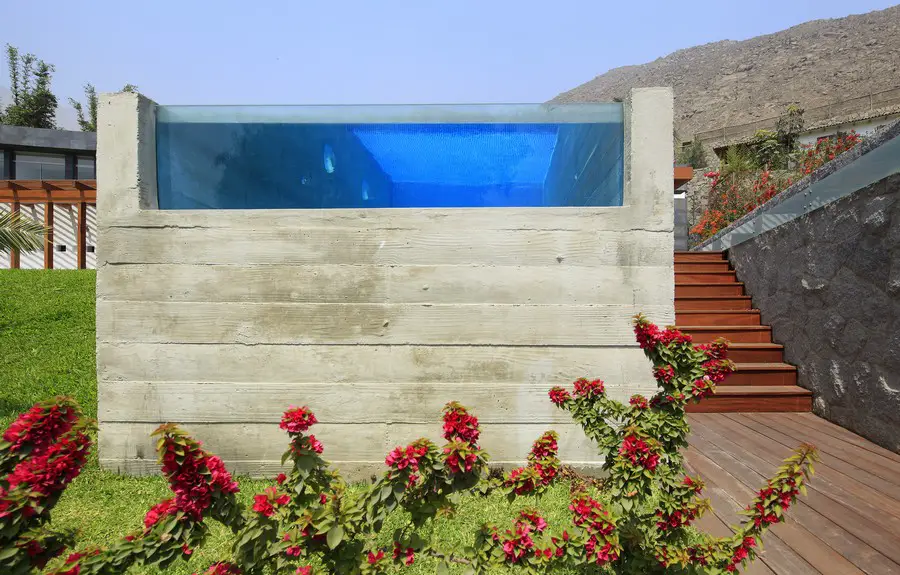

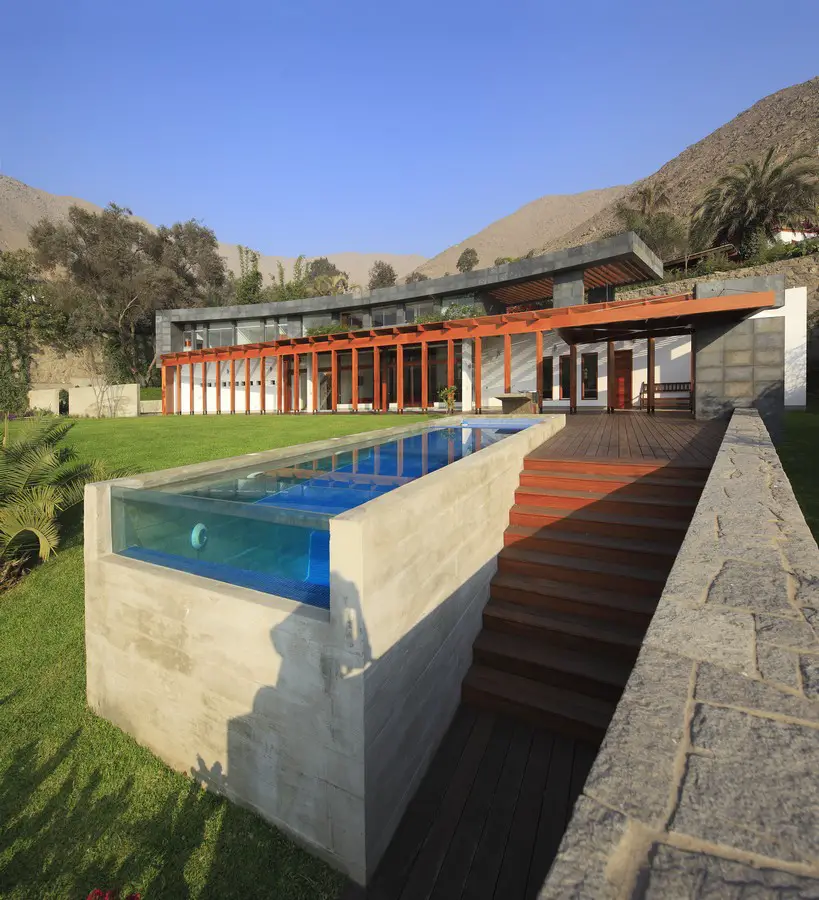

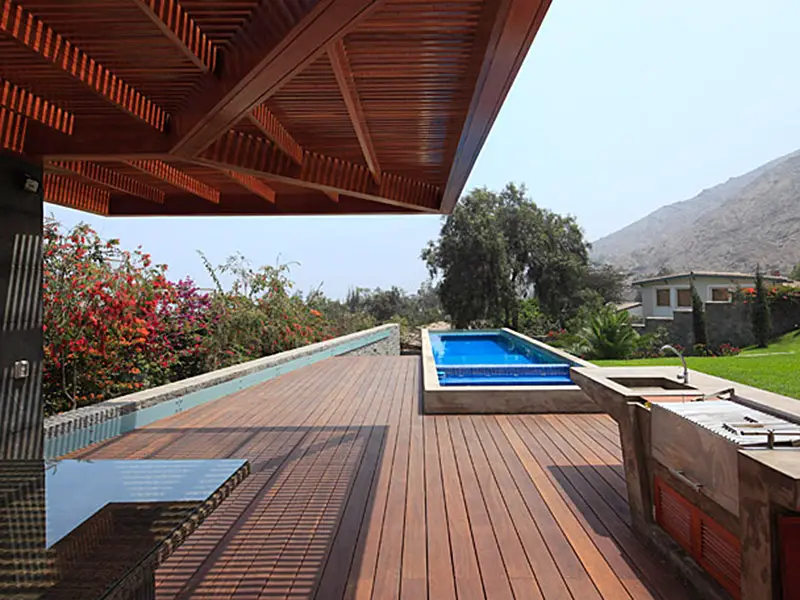

Deep-veined wooden planks were used to form the concrete walls that frame the standout olive tree at the entrance. The pool received an identical treatment on its concrete side walls, and its floor and back were specifically treated like a swatch of blue mosaics.

cyd-house-p131014-j-20
15cyd-house-p131014-j-12

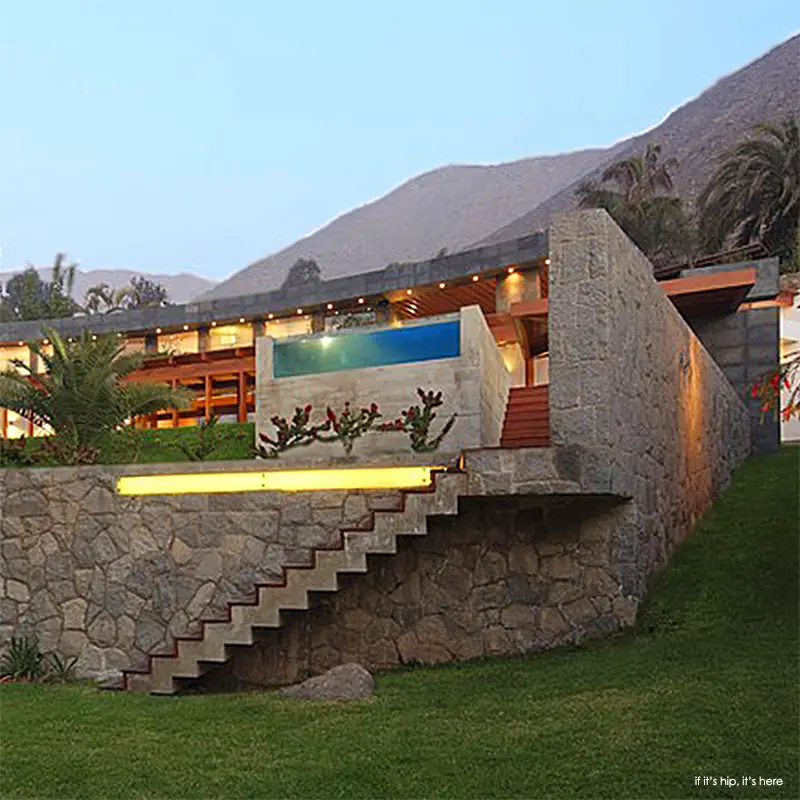

cyd house pool from end

The potted bougainvillea on the the second floor will thrive and lend a lush, colorful levity to the space below them once they are grown.

cyd-house-p131014-j-19

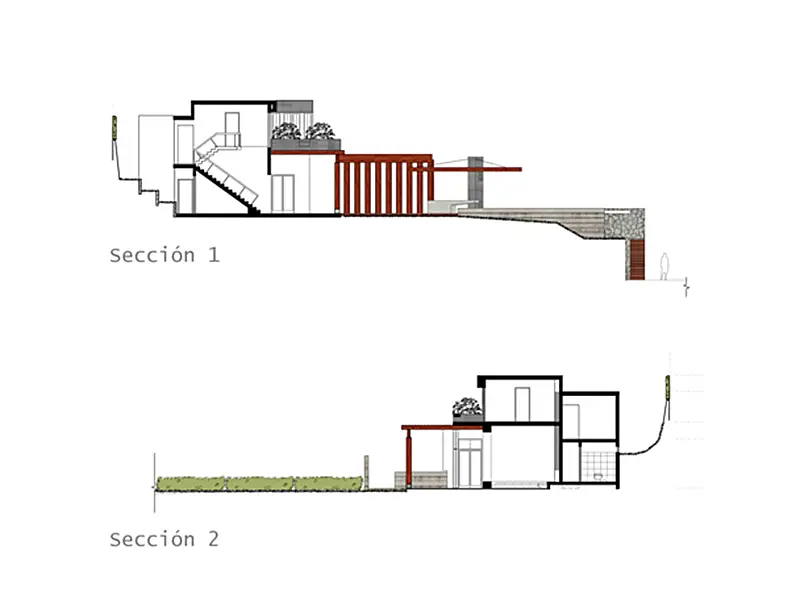

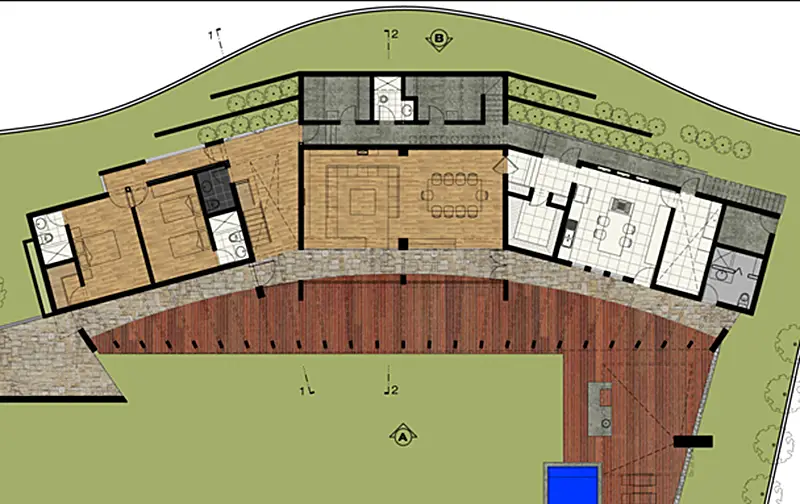

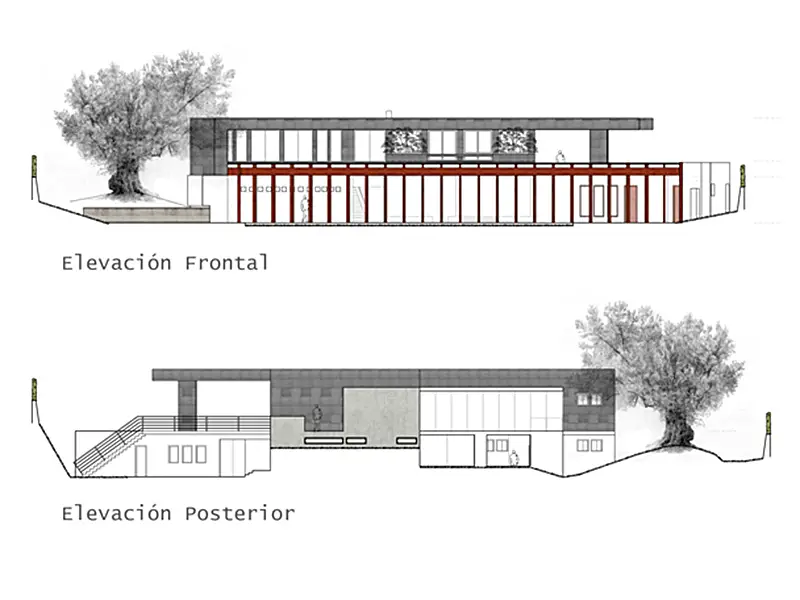

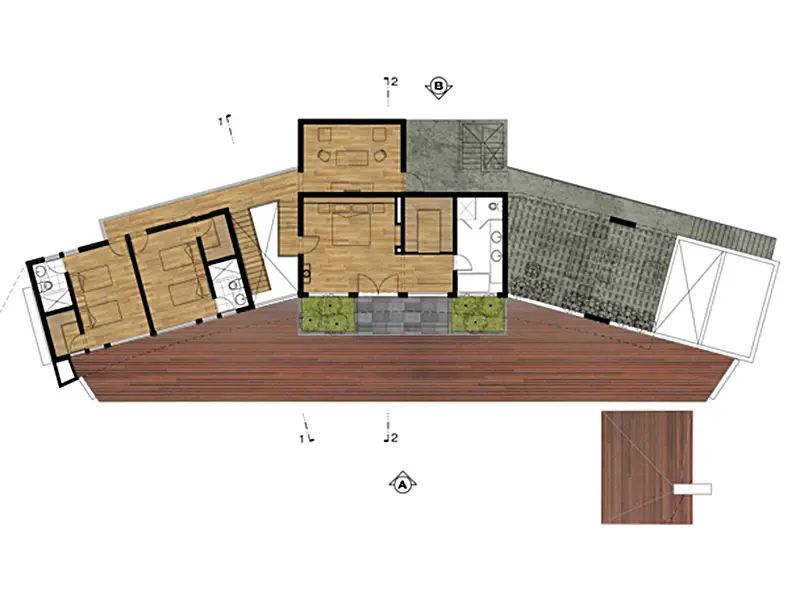

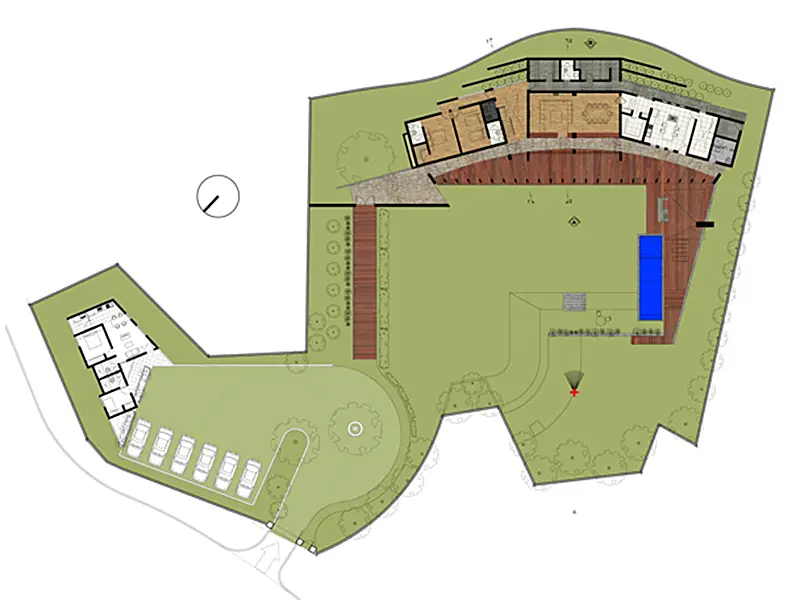

Plans:
40
41
D:_a WORKINGBIENAL XVCasa de Campo en los Condores- XV BIENAL
43
44

Architects/Design:V.Oid Architect Felipe Ferrer and Diacrítica Architect Alonso Toledo
Collaborator architect: Arq Karlos Rioja
Location: Chaclacayo, Lima, Perú
Landscape: Emilia Murata
Structures: Ing. Antonio Blanco
Construction: Ing Carlos Lopez
Location: Chaclacayo, Lima. Perú
Lot: 2,470sqm
Built area first floor: 245sqm
Built area second floor: 142.5sqm
Shaded area: 152sqm
Service area: 58.5sqm
Photography: Juan Solano
