A Luxury Watch That Looks As Though It Could Hop, The HM3 Frog By MB&F.

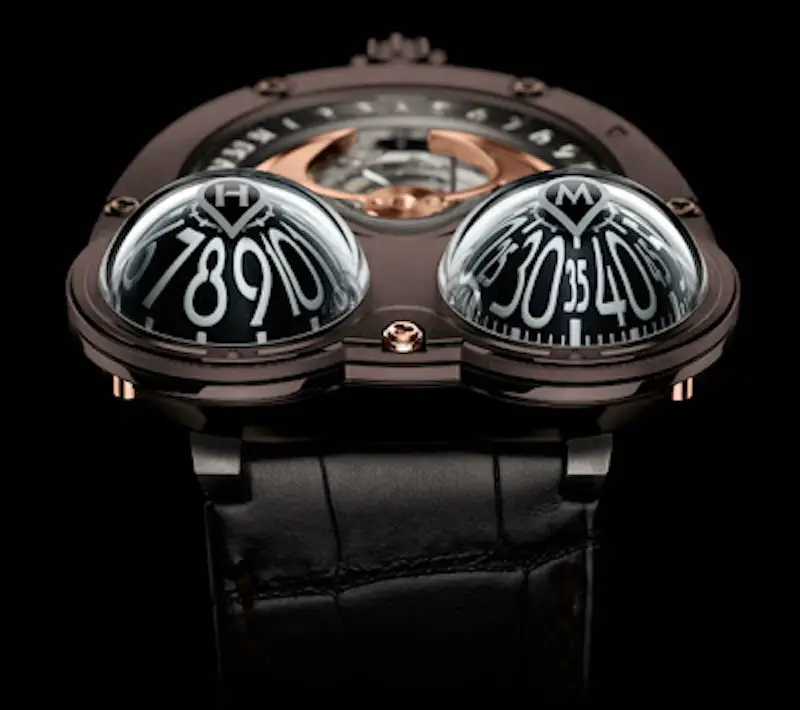

above: The newest HM3 Frog is the Chocolate frog. Red gold with Chocolate PVD coated titanium in a limited edition of 10 pieces

MB&F presents Horological Machine N°3 Frog. Haute horlogerie is (usually) a very restrained and serious business; however one of Maximilian Büsser main goals in creating MB&F was to bring a child’s sense of awe and sense of playfulness into high-end watchmaking. There is no doubt that with the HM3 Frog, MB&F have certainly achieved that goal.

The protruding eyes of the (amphibian) frog enable it to see in many directions without having to turn its head. The bulbous domes of the HM3 Frog have the opposite, but no less important, feature of enabling the time to be easily seen from many angles without having to turn the wrist. The Frog differs substantially from HM3 in that it is the aluminum domes that rotate under the sapphire crystals in the Frog, whereas it is the hour and minute hands that rotate around their respective stationary cones on HM3.

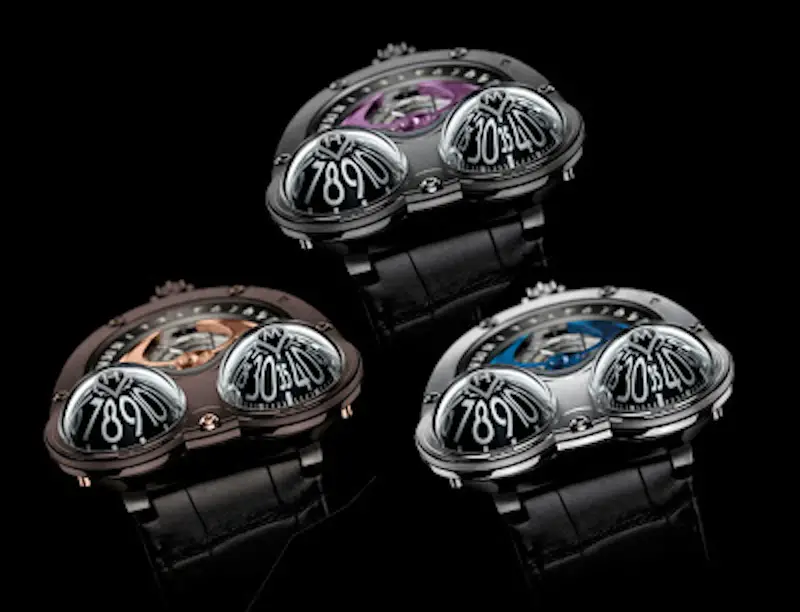

The HM3 Frog is available in Grade 5 titanium with blued rotor, a limited edition of 10 in chocolate PVD-coated grade 5 titanium with red gold rotor, or a limited edition of 18 in black PVD-coated zirconium with purple rotor:

Rotating domes of this size and shape posed MB&F with a number of technical challenges. The hour and minute domes are machined from solid aluminium – chosen for its optimal strength to weight ratio. The domes weigh in at just over 0.5g. They are milled first from the outside and then the inside to arrive at a paper-thin wall thickness of just 0.28 mm, which reduces their energy requirements to an absolute minimum.

Even the fabrication of the semi-spherical sapphire crystal domes was incredibly demanding and only recently even possible at all. This is due to the fact that any slight imperfection in the sapphire might introduce a disconcerting magnification effect. The sapphire has to be shaped and polished to be perfectly uniform.

The Frog’s unusual method of indicating time necessitated the development of a new gear train for the HM3 engine. This was because the aluminum hour dome of the Frog rotates in 12 hours compared to the 24 hour revolution of the HM3 hour hand. And as the oversized date wheel is driven from the hours, the gearing driving the date had to be reworked as well.

The Frog may portray the time in a playful manner, but there is nothing but serious and meticulous attention to detail and care regarding the fine hand-finishing of the high-tuned engine purring within its lightweight high-tech titanium or zirconium case.

A close inspection of the case is rewarded with carefully thought out detailing including a figure 8 engraved around the domes that mirrors the form of the display back(revealing dual ceramic bearings); distinctive clover-head white gold screws; and an engraved arrow discreetly indicating the easy to read over-sized date.

above image courtesy of ablogtoread

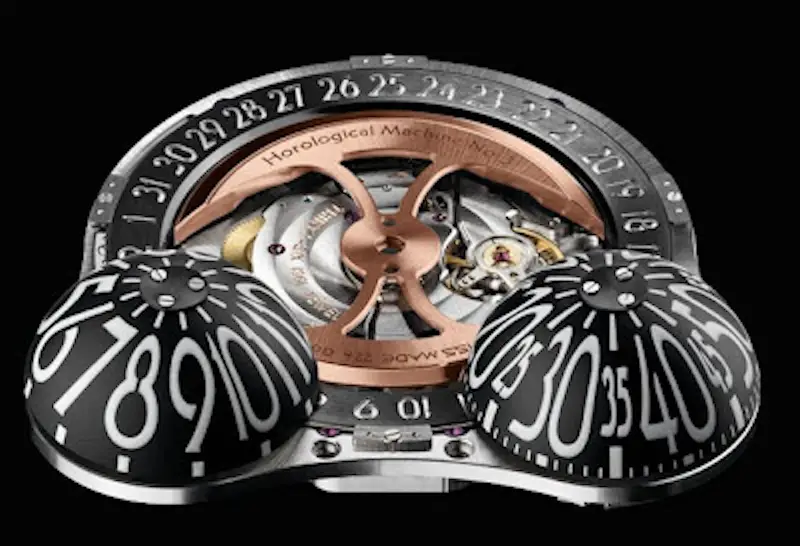

If the viewer’s gaze manages to break away from the obiculate indications, it is likely to be arrested by the brightly-coloured 22K gold battle-axe winding rotor or the intricacies of the thoroughbred movement beneath.

the original HM3 in Grade 5 titanium with blue rotor:

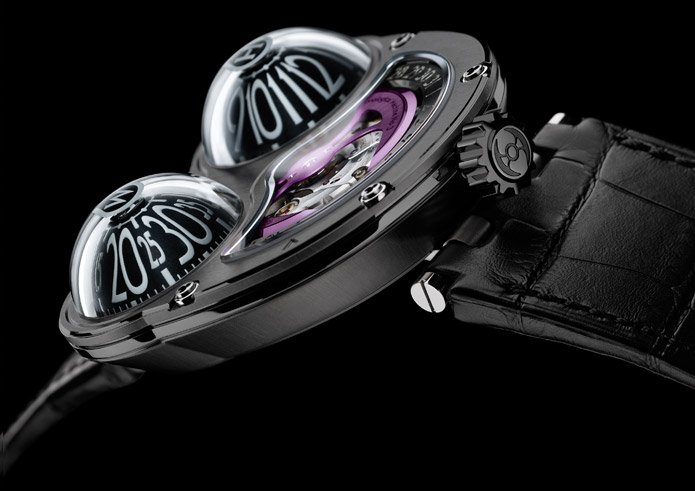

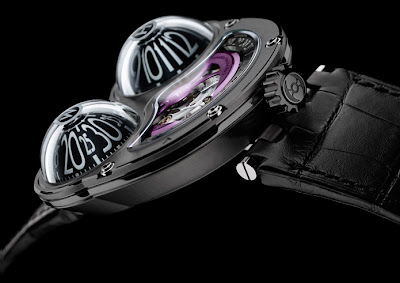

The limited edition of 18 in black PVD-coated zirconium with purple rotor:

a limited edition of 10 in chocolate PVD-coated grade 5 titanium with red gold rotor

Grade 5 titanium/blue 22K gold rotor; limited edition of 10 chocolate titanium/22K red gold rotor; limited edition of 18 black zirconium/purple 22k gold rotor
 Screwed-down crown.
 Dimensions (exclusive of crown and lugs) 47mm x 50mm x 16mm
. Number of case components = 53.

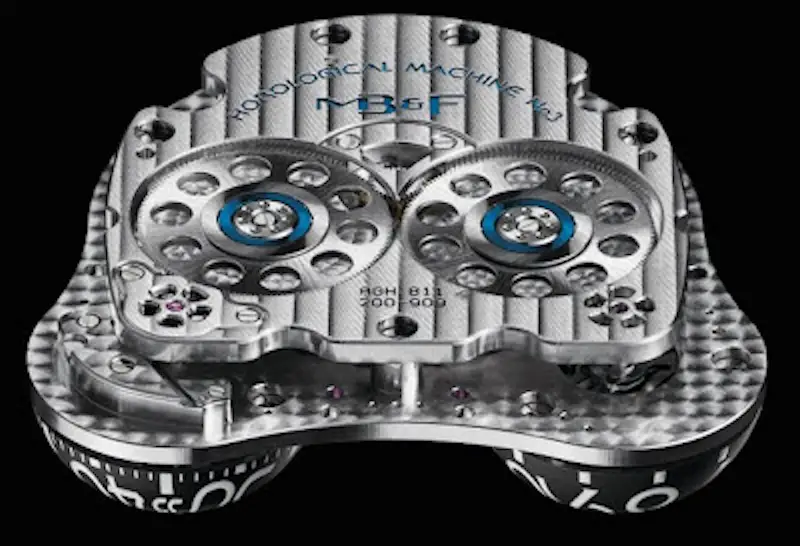

Three-dimensional horological engine designed by Jean-Marc Wiederrecht/Agenhor
. Powered by a Girard-Perregaux base.
Balance oscillating at 28,800 bph
 22K gold battle-axe shaped ‘mystery’ automatic winding rotor.
Hour and minutes information transmitted via ceramic ball bearings to rotating domes.
Number of jewels 36 (all functional)
. Number of components = 304.

Hour and day/night indicator on one dome (aluminium dome rotating in 12 hours).
Minutes on second dome (aluminium dome rotating in 60 minutes)
. Date around the movement.

Rotating aluminium domes, stationary hands
Sapphire crystals
Domes and both display backs with anti-reflective treatment on both faces
. Domes for indications in aluminium, 0.58g

Price ranges from $82,000 to $100,000 USD

And you gotta love the Horolobot!:
