The Pininfarina E-voluzione Is The Brand’s First Electric Bike.

pininfarina e-bike

Although Pininfarina had a previous collaboration with 43 Milano which yielded the electric Limited Edition Pininfarina Fuoriserie, a stunning $10k+ electric bike, these are the first to be mass-marketed. Three models that combine sporty character with an eco-friendly soul, the E-voluzione is a total integration of the parts: battery, mid- engine, handlebar, lighting system.

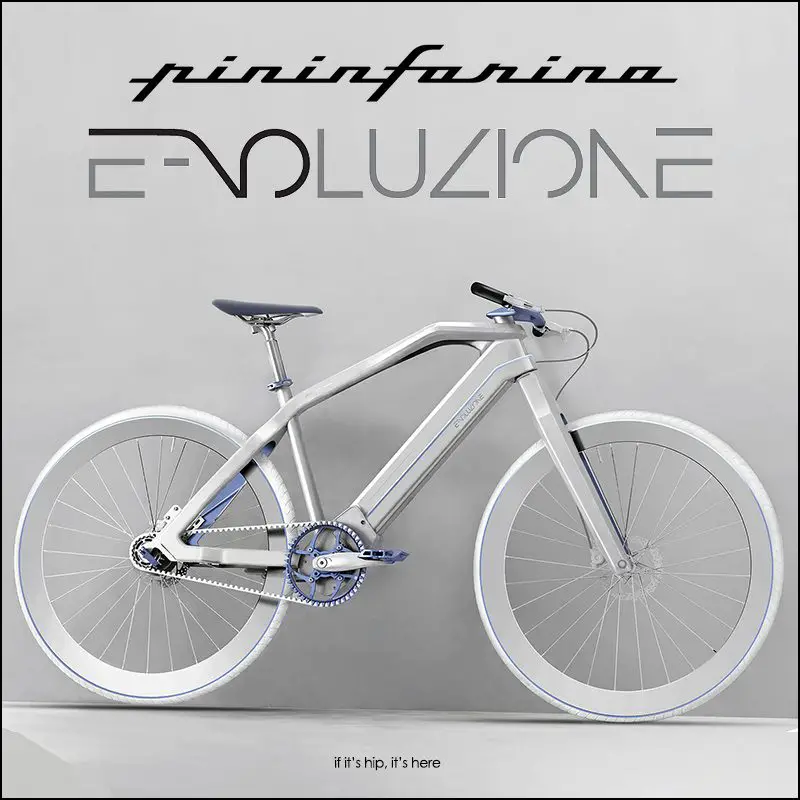

The Pininfarina E-voluzione

electric bikes

An electric bike able to make a real evolution. In design. In technology. In performance. In comfort. Evoluzione is the first electric bike born from the collaboration between Pininfarina and electric bike makers Diavelo a member of the Accell Group.

The partnership combines the long Pininfarina heritage in designing sporty cars and the vocation to research eco-friendly solutions with Diavelo a member of the Accell Group state-of-the-art technology in the bicycle sector.

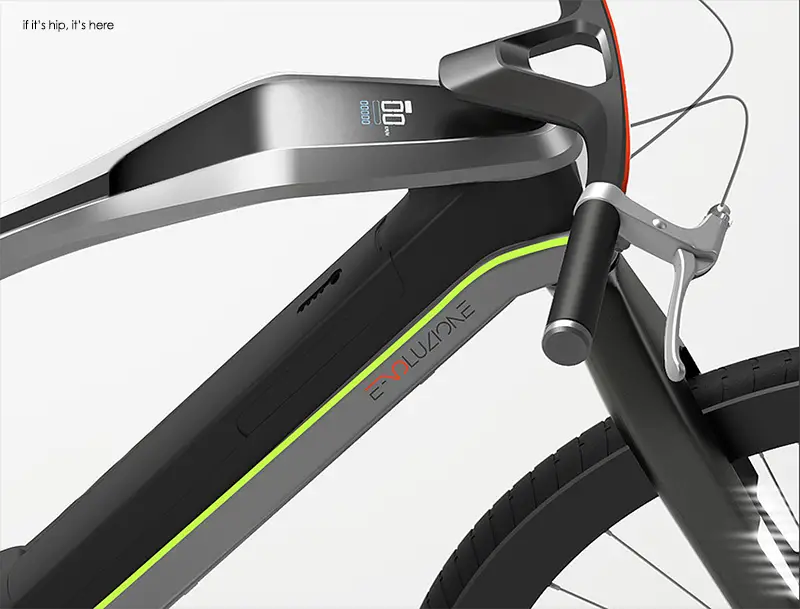

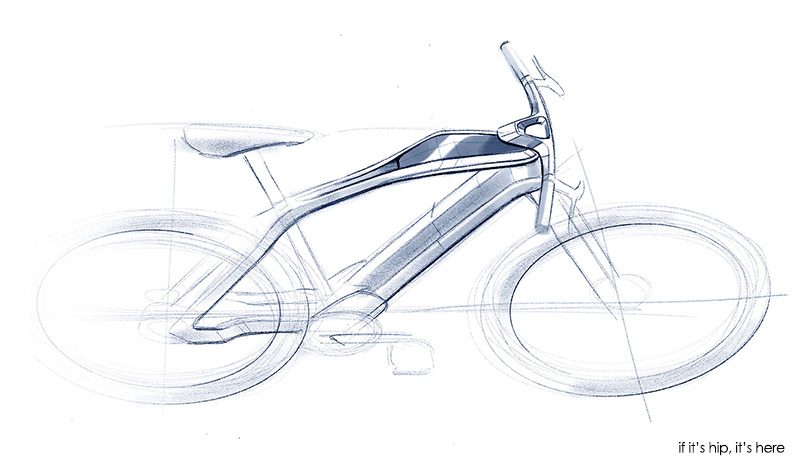

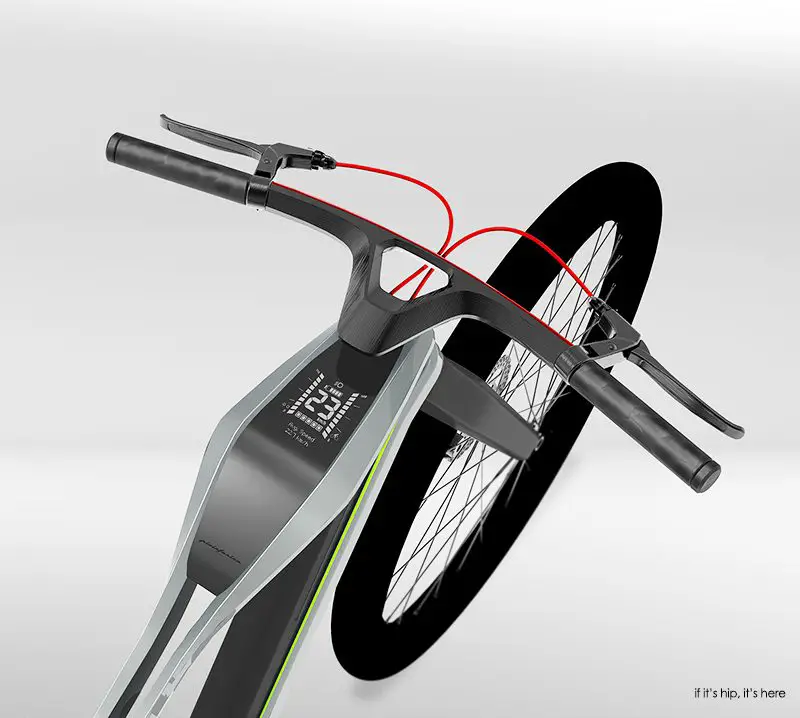

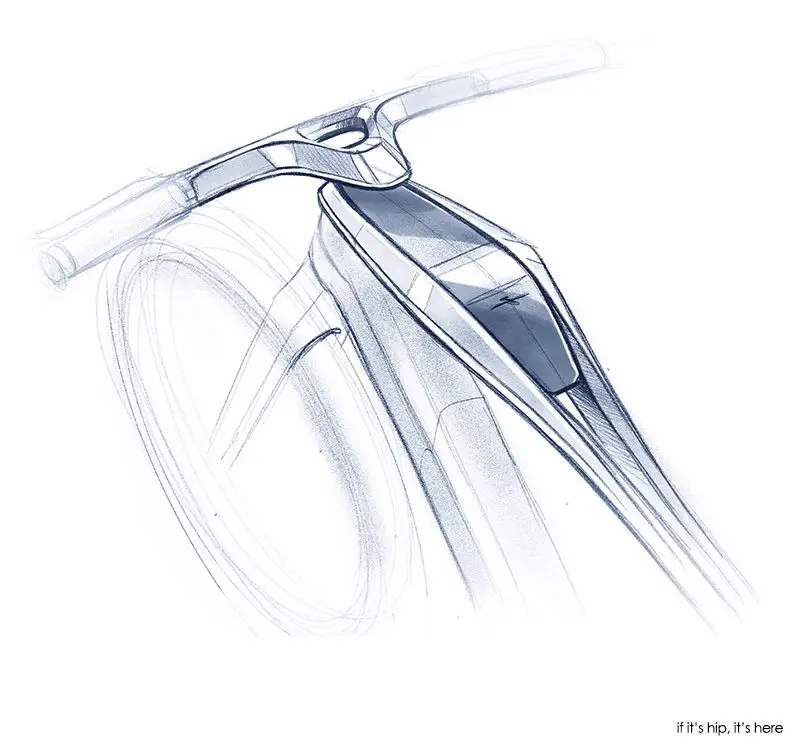

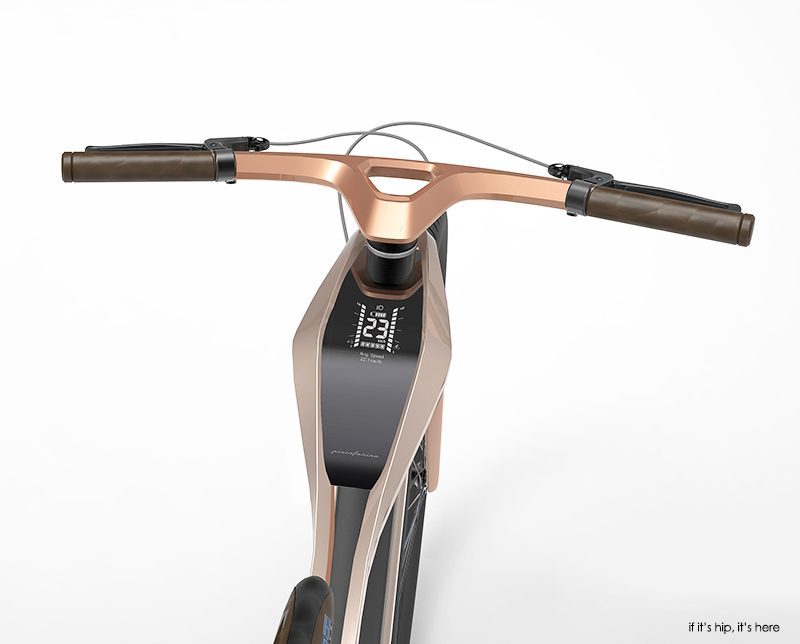

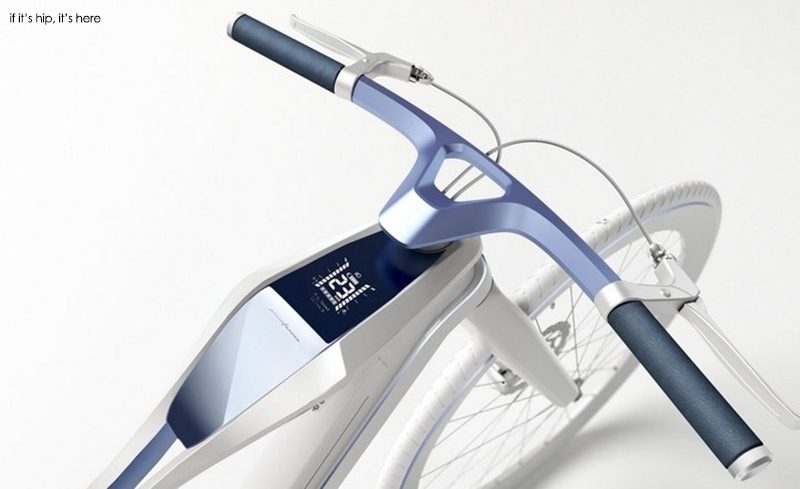

Evoluzione is innovative from several standpoints. The key word of the project is integration. Developed from a holistic design philosophy, all the main parts are perfectly integrated in the bike: the battery (patented technology), the mid-engine, the handlebar and stem, the cockpit, all the cables, the lighting system.

pininfarina

The advantage of a high level of integration of all components is not only aesthetic but also functional because it means a better weight distribution and balance and a more comfortable and performing ride.

e-bikes

Thanks to the use of carbon in the frame and in the parts (bar, seat post, wheels), the bike is super light compared with the competitors on the market (only 16kg).

Moreover, the carbon frame is realized with an innovative technology (autoclave carbon).

The advantage of lightness is a bike more maneuverable and more performing. There is also strong innovation also in the design of the motor and the transmission.

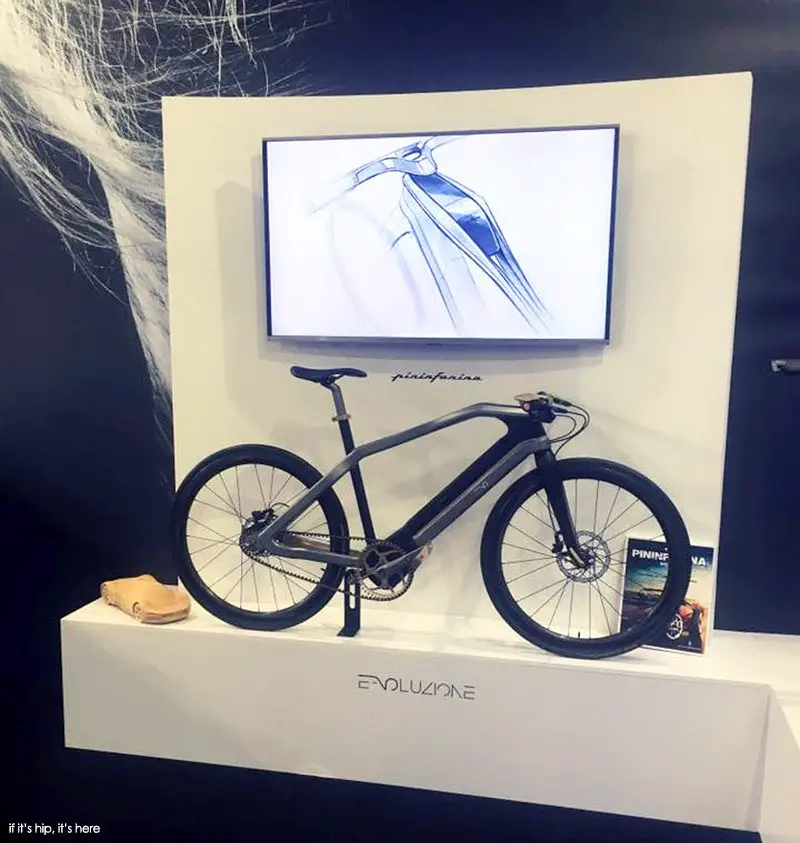

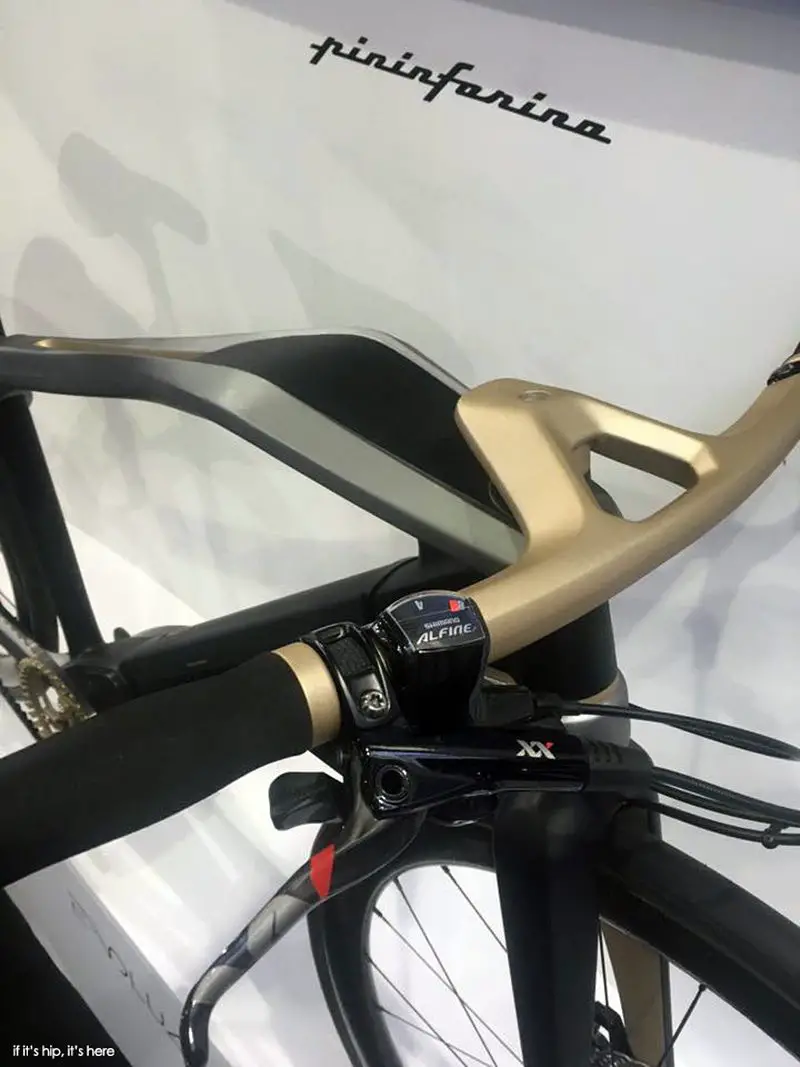

The bike displayed at Diavelo's store
The bike displayed at Diavelo’s store

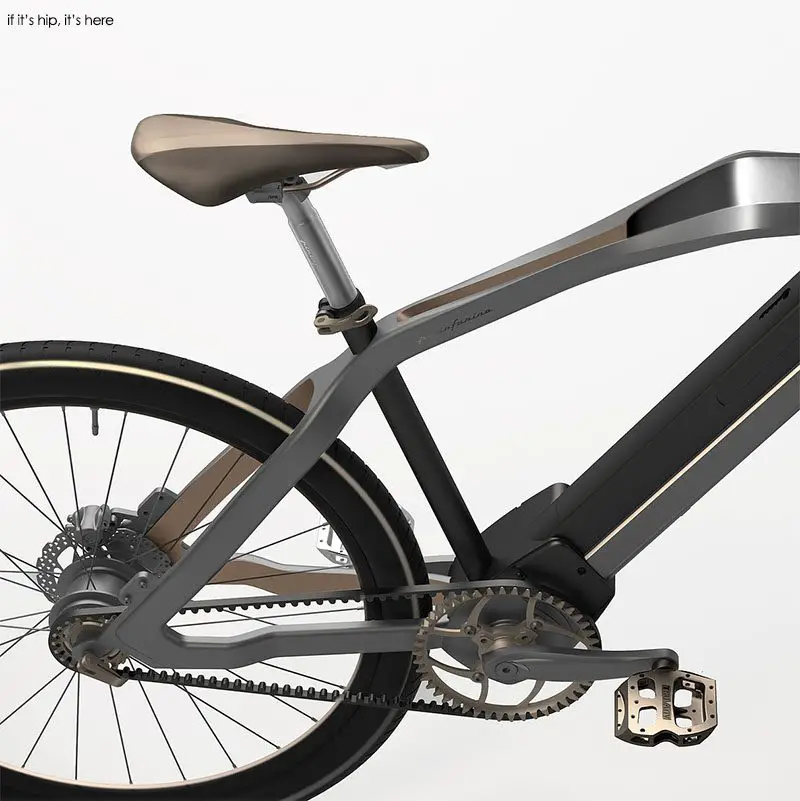

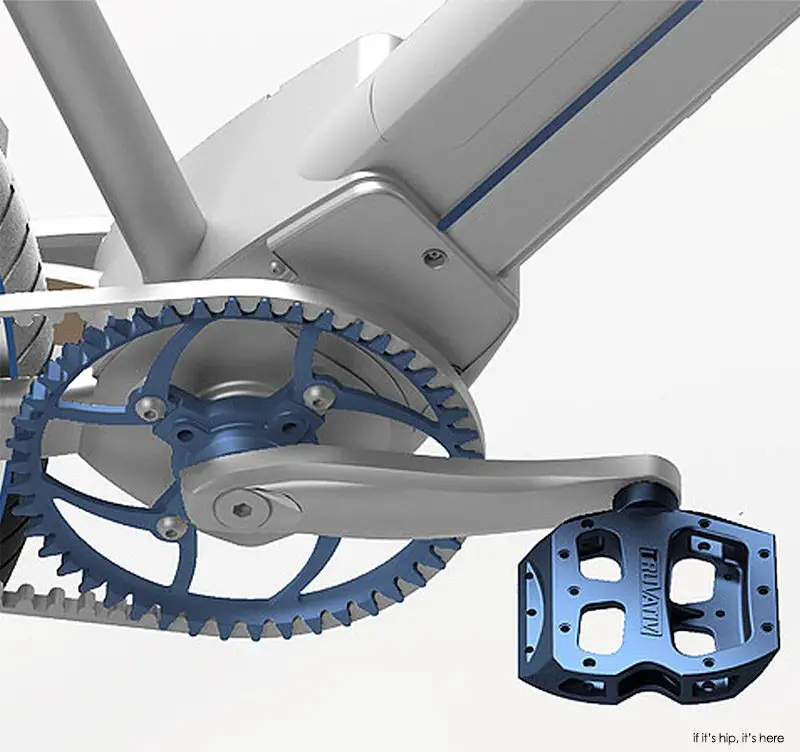

The high torque German Brose mid motor is fully integrated with the carbon frame. The belt drive transmission warranties super silent drive and no maintenance. Also the patented inside the frame Panasonic battery (500Wh – 13,6A – 36V) is fully integrated and easy removable for recharge. The bike is completed by hydraulic disc brakes and Shimano components.

“Evoluzione represents a perfect synthesis of our spirit: sporty character and eco-friendly soul” affirms Paolo Pininfarina, Chairman of the Group. “Sporty and dynamic, a harmonic bike able to guarantee high performances and great comfort”.

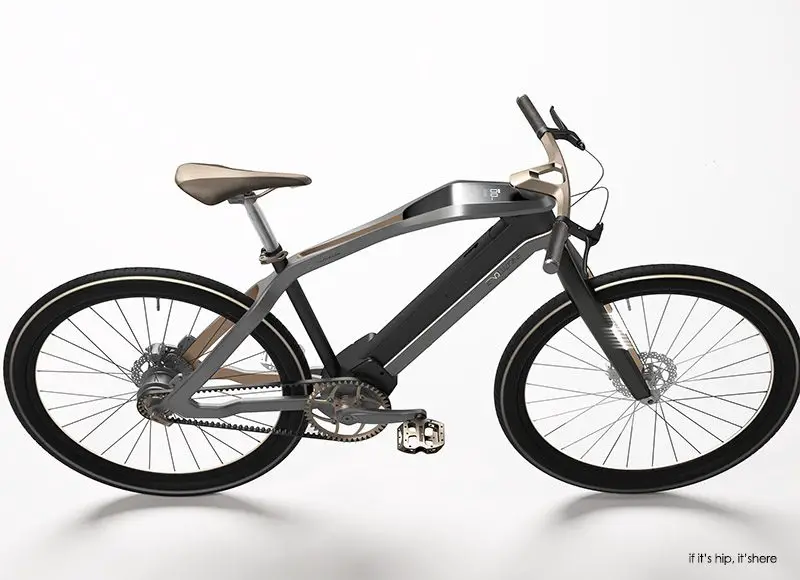

ELEGANCE:
elegance ebike

The elegant choice. Elegant colors. The software settings for the motor is set to be in cruise mode. It will give you a smooth and fast acceleration and a lot of torque when you need it.

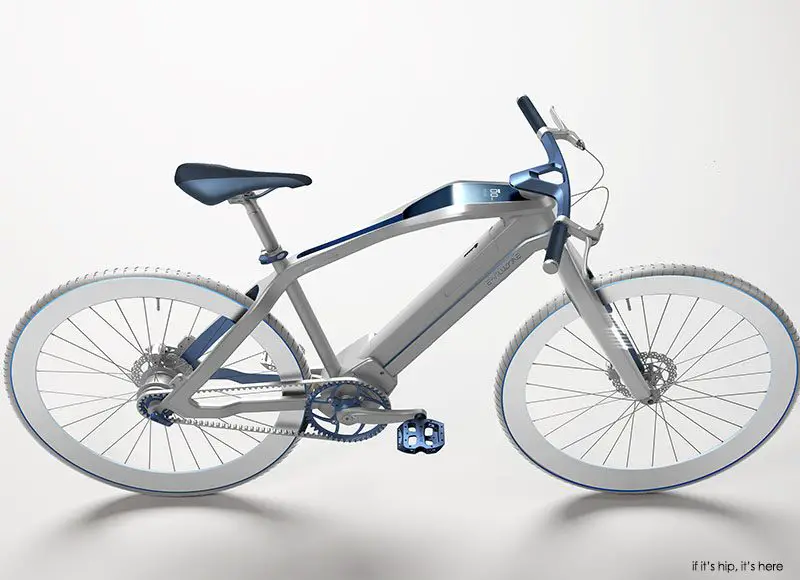

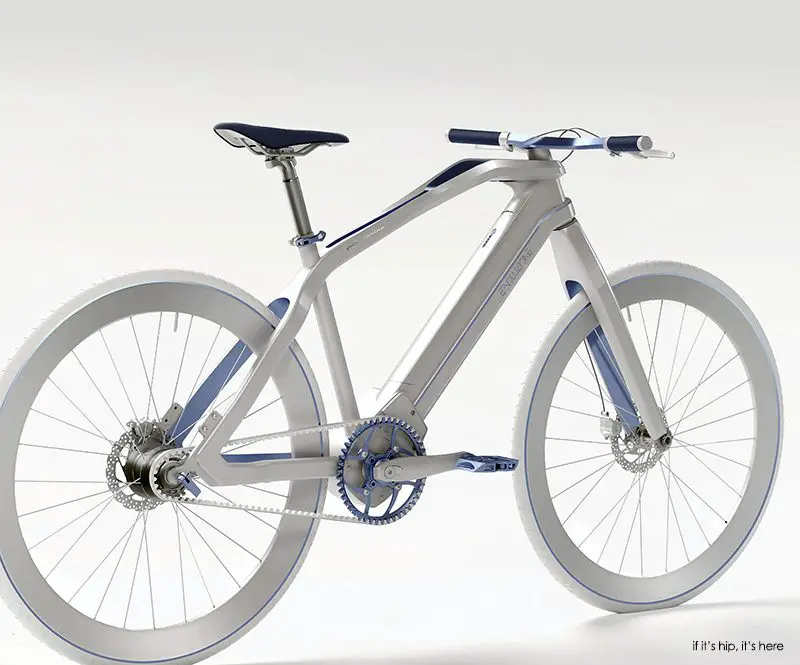

HI-TECH:
hi-tech

This is the choice for you who like technique and hi-tech solutions. The motor control is more sporty and a bit more lively than the Elegance model.

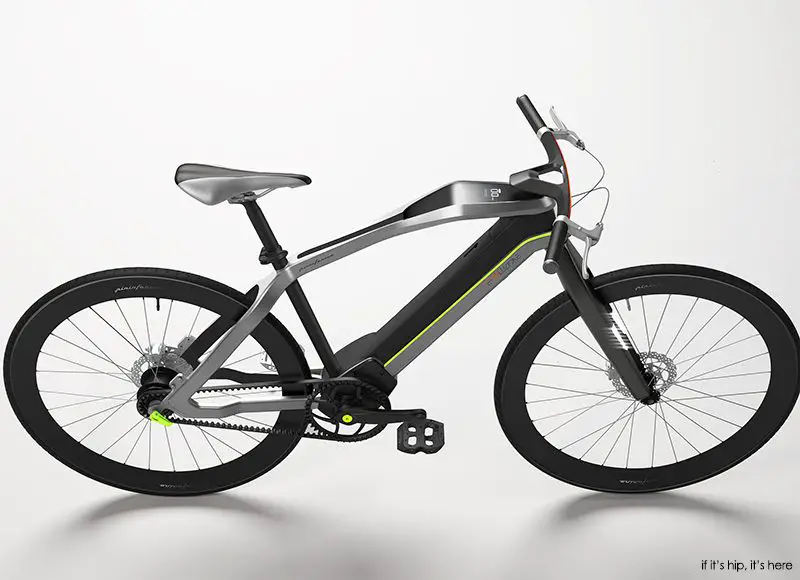

DYNAMIC
dynamic ebikes

The most sporty model. The software settings of the motor is in Dynamic mode. Here you get fast acceleration and a lot of torque at in any condition.

Specifications:
Frame: Carbon 51, 53, 55 cm
Fork: Carbon
Battery: Panasonic 500W-13,6Ah-36V integrated in frame, UART BMS
Charger: 36V CE standard
Indicator: Brose
Motor: Brose
Sensor: Brose
Gear: Rear-hub Shimano – Alfine 8 Speed
Shifter: Shimano – Rapidfire Plus
Chain: Continental Belt drive
Brake lever: Shimano – no electric cut off
Front / rear brake: Shimano – hydraulic disc
Front / rear hub: For Disc Brake
Spoke: 13G
Rims: 36H*700c double wall
Tyre Schwalbe: Energizer Plus Greenguard 28×1.75
Tube: Schwalbe: AV19
Handlebar Carbon: for 31,8mm, 30mm rise, 9deg bend
Stem Carbon: ahead stem 90mm for 31,8mm handlebar
Grips: Rubber L/135, R/135mm
Pedal: With BS reflector

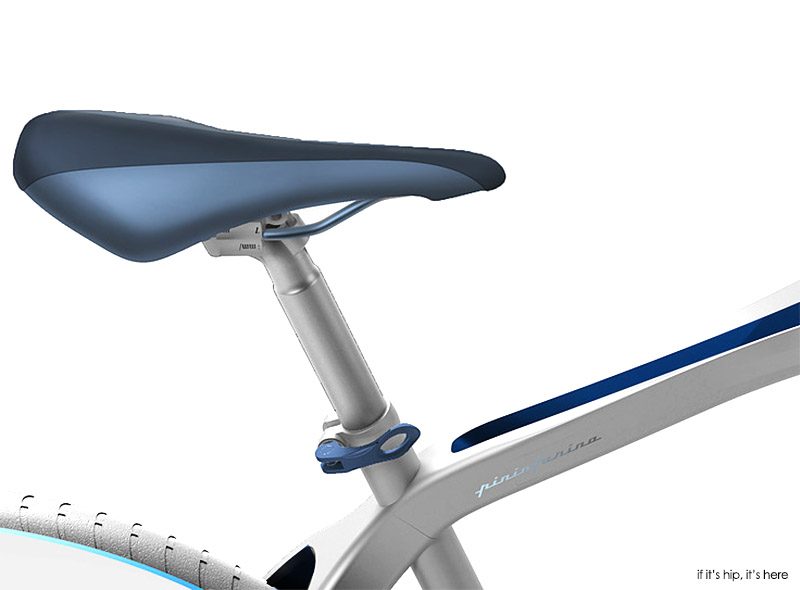

Saddle: PU material No seams
Seat post: No suspension
Front / rear light: LED integrated

Motor type: Electric mid motor, brushless inner rotor
Weight: 3.400 g
Dimensions: 213 x 150 x 128 mm
Nominal voltage: 36 V
Torque max: 90 Nm
Rated continous power: 250 W
Assistance up to 25 km/h: | also available as 20 mph
Pushing aid: up to 6 km/h (4 mph)
Ingress protection rating: IP56
Level of efficiency: up to 75%
Gear ratio: 1:27
